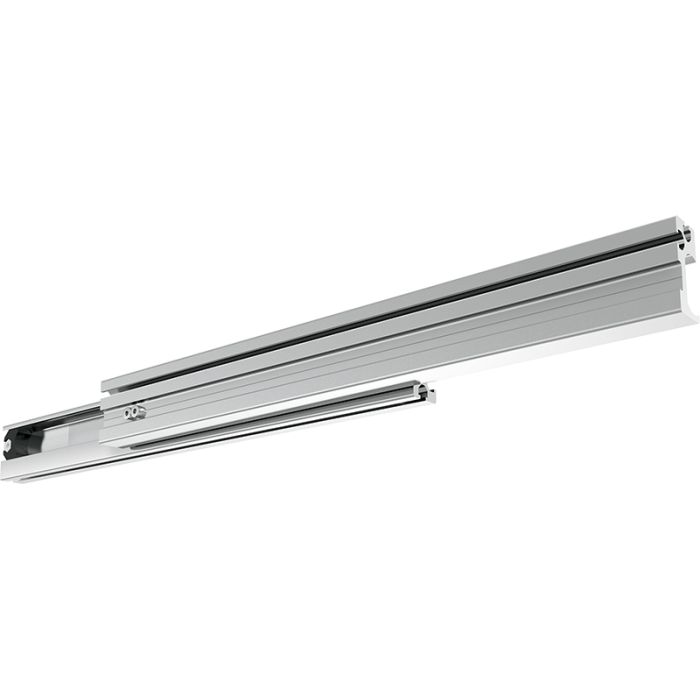

FR 9000 Pull-Out System Aluminium 200 kg
FR 9000 is a highly flexible pull-out system built from only a few components. It is particularly suited to vehicle fit-outs, where low weight, high load capacity and corrosion resistance matter.
Features
- Bottom and side mounted
- Installation width: 56 mm
- 200 kg load capacity (dynamic)
- Approx. 70% extension
- The special profile shape compensates for installation tolerances in width, height and angle
- Simple assembly with square nuts and M6 bolts
- A groove in the profile marks the position of the M6 bolt
- Bottom and side mounted
- Installation width: 56 mm
- 200 kg load capacity (dynamic)
- Approx. 70% extension
- The special profile shape compensates for installation tolerances in width, height and angle
- Simple assembly with square nuts and M6 bolts
- A groove in the profile marks the position of the M6 bolt
Components
- Purpose-designed 3000 mm aluminium profile (cut to the required length)
The mounting kit contains the following components
- 2 ball-bearing nylon rollers (white)
- 2 solid nylon rollers (red), tolerance compensating
- 4 soft rubber end stops
- 16 M6 x 20 mm bolts (DIN 7984)
- 24 M6 square nuts (DIN 557)
Please note: never use rollers of different colours on the same side.
- Purpose-designed 3000 mm aluminium profile (cut to the required length)
The mounting kit contains the following components
- 2 ball-bearing nylon rollers (white)
- 2 solid nylon rollers (red), tolerance compensating
- 4 soft rubber end stops
- 16 M6 x 20 mm bolts (DIN 7984)
- 24 M6 square nuts (DIN 557)
Please note: never use rollers of different colours on the same side.
Product Name
Qty
SKU 209501
9 in stock
SKU 209609
4 in stock
| Loading Capacity | 200 kg |
|---|---|
| Selectable products in the package | 209501, 209609 |
