Wide-Angle Hinges for Cabinets and Furniture
Wide-Angle Hinges for Cabinets and Furniture
Wide-angle hinges allow the door to open considerably further than standard cabinet hinges. The wider opening provides better access to the cabinet interior and can make it easier to use internal drawers, pull-out shelves and other fittings.
For drawers and pull-out shelves behind the door
On Salice hinges, the letter K in the product code indicates that the model can be used when drawers or pull-out shelves are positioned behind the door. When combined with a 0 mm mounting plate, these hinges provide 0 mm protrusion at 90° opening. The door therefore does not project into the clear cabinet opening or obstruct the pull-out.

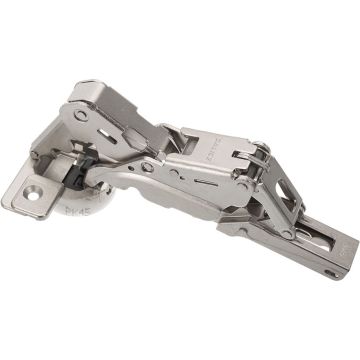

Examples of these models include C2PKA99, C2PKPE9 and C2AKAE9.
Opening angles and functions
The range includes hinges with opening angles of 155°, 165° and 270°. Models with a 155° or 165° opening provide good access to the cabinet interior, while a 270° hinge can allow the door to fold back towards the outside of the cabinet.
Wide-angle hinges are available with self-closing, soft-close and push-to-open functions. Push-to-open models have a reverse-action spring. Pressing the door releases the push catch, after which the hinge pushes the door outwards.
Choosing the correct wide-angle hinge
Check the opening angle, door position, door thickness, cup size, drilling dimensions and available movement space. Wide-angle describes how far the door can open and should not be confused with angled hinges, which are used when the door or cabinet side is installed at a particular angle.
A mounting plate is never included when you purchase a hinge. For a compatible K model to provide 0 mm protrusion at 90° opening, it must be combined with a 0 mm mounting plate.
Frequently asked questions about wide-angle hinges
What is a wide-angle hinge?
It is a hinge that allows the door to open considerably further than a standard cabinet hinge. This provides better access to the cabinet interior.
Which hinges are suitable for drawers and pull-out shelves behind the door?
Salice hinges containing the letter K in the product code can be used when drawers or pull-out shelves are positioned behind the door. Examples include C2PKA99, C2PKPE9 and C2AKAE9.
What does 0 mm protrusion at 90° opening mean?
It means that the open door does not project into the clear cabinet opening or obstruct a drawer or pull-out shelf behind it. This applies to compatible K models used with a 0 mm mounting plate.
Which opening angle should I choose?
Models with a 155° or 165° opening are suitable when better access to the cabinet interior is required. A 270° hinge is used when the door needs to open back towards the outside of the cabinet.
Is a wide-angle hinge the same as an angled hinge?
No. Wide-angle describes how far the door can open. An angled hinge is used when the door or cabinet side is installed at a particular angle.
Are wide-angle hinges available with different closing functions?
Yes. Self-closing, soft-close and push-to-open models are available. Check the product function and ensure that it is suitable for the cabinet construction.
Is a mounting plate included with the hinge?
No. A mounting plate is never included when you purchase a hinge. To provide 0 mm protrusion at 90° opening, a compatible K model must be used with a 0 mm mounting plate.
