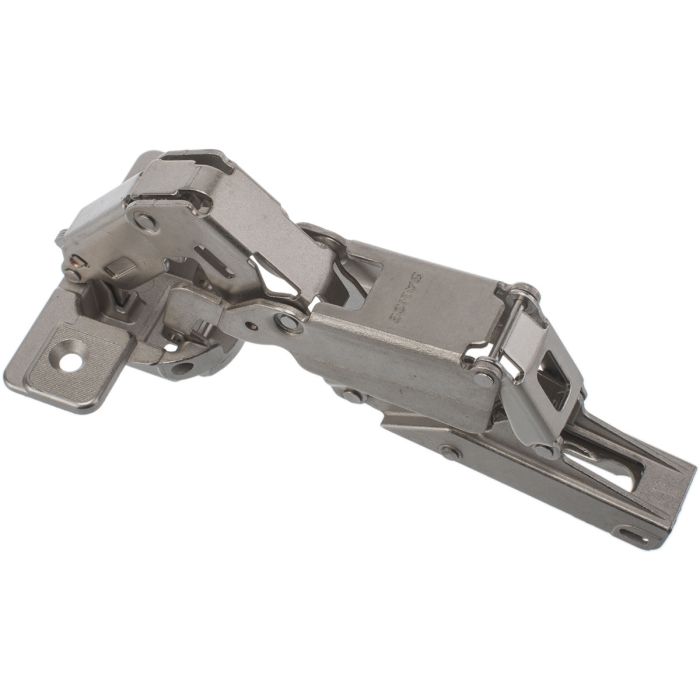

SALICE Hinge Series 200 165° Full Overlay C2PFD99

SALICE Series 200 165° Concealed hinge for full overlay door C2PFD99.

Technical information
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
112 in stock
£3.15

Additional Information

Additional Information

SKU 201793
Weight (Kg) 0.1610
K
3-8 mm
Drilling depth 11 mm
ø
35 mm
H=
H=10+K-(D)
Material Steel / Zamak
Fixings
Wood Screw
Finish Nickel Plated
OA
165°
DP
45 x 9,5
