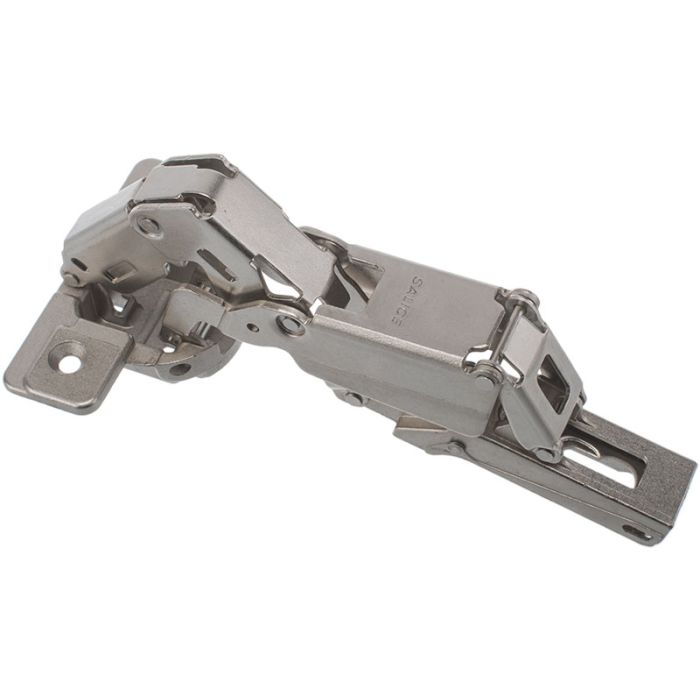

SALICE Hinge Series 200 165° Full Overlay C2PFA99
- 165° Opening angle
- Automatic closing
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional or snap-on assembly of the door.
Mounting plate is not included and has to be ordered separately.
|Drilling depth||11 mm|
|Material||Steel / Zamak|
|DP||45 x 9,5|
