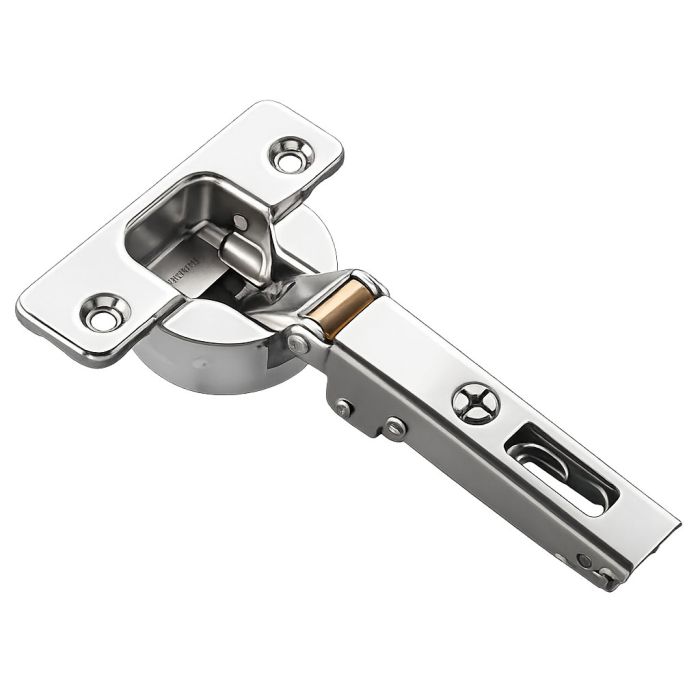

Hinge – Salice Series 200 Silentia+ 94° Full Overlay for Thick Doors C2PBAE9

Hinge C2PBAE9 Salice Series 200 Silentia+ 94° Self-closing hinge with integrated damping for full overlay thick doors, max. 35 mm.

Features
- Nickel-plated steel finish
- Height and depth adjustment via mounting plate
- Fastening with wood screws
- Cup drilling pattern: 45 x 9.5 mm
- Possible door drilling distance (K): from 3-9 mm
- Drilling depth 15.5 mm
- Dual hydraulic dampers (silicone-based)
- Integrated damping adjustment +/-

Mounting plate is not included and has to be ordered separately.
