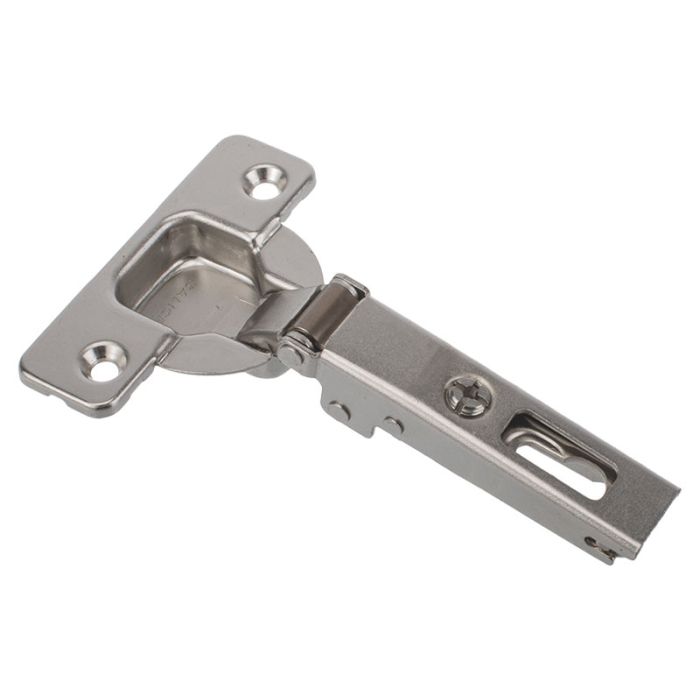

SALICE - Hinge Series 100 105° Full Overlay C1A6A99

SALICE Series 100 105° Concealed hinge for full overlay door, only 8 mm drilling depth, C1A6A99.

Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
217 in stock
£1.35

Additional Information

Additional Information

SKU 202237
Weight (Kg) 0.0590
K
3-6 mm
Drilling depth 8 mm
ø
35 mm
H=
H=15+K-(D)
Material Steel
Fixings
Wood Screw
Finish Nickel Plated
OA
105°
DP
48 x 6
