SALICE - Hinge Series 100 105° Half Overlay C1A6G99

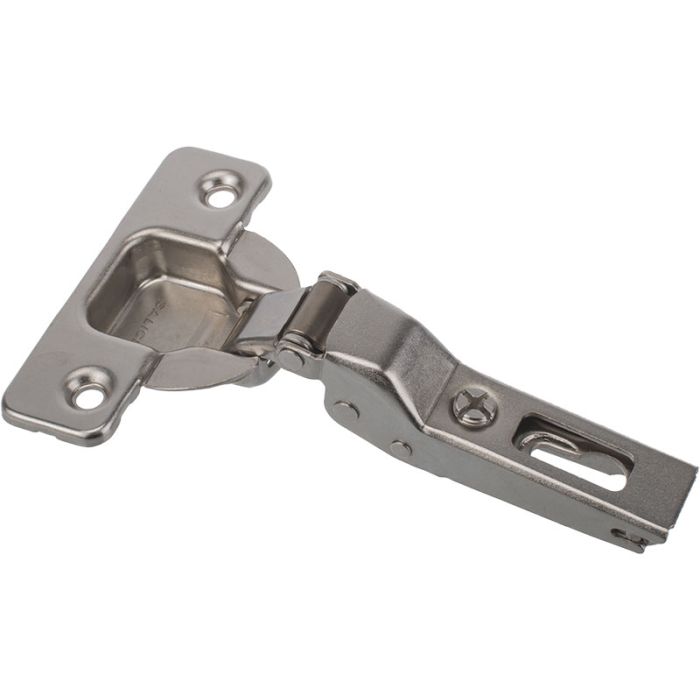

SALICE Series 100 105° Concealed hinge for half overlay door, only 8 mm drilling depth, C1A6G99.

Technical information
- 105° Opening angle
- Automatic closing (with spring)
- Hole pattern: 48 x 6 mm
- Fixing with wood screw
- 8 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
373 in stock
£1.35
Downloads
pdf
(Size: 767.1 KB)
More Information
SKU202239
Weight (Kg)0.059000
K3-6 mm
Drilling depth8 mm
ø35 mm
H=H=6+K-(D)
MaterialSteel
FixingsWood Screw
FinishNickel Plated
OA105°
DP48 x 6
