SALICE - Hinge Series 700 110° C7P6ND9

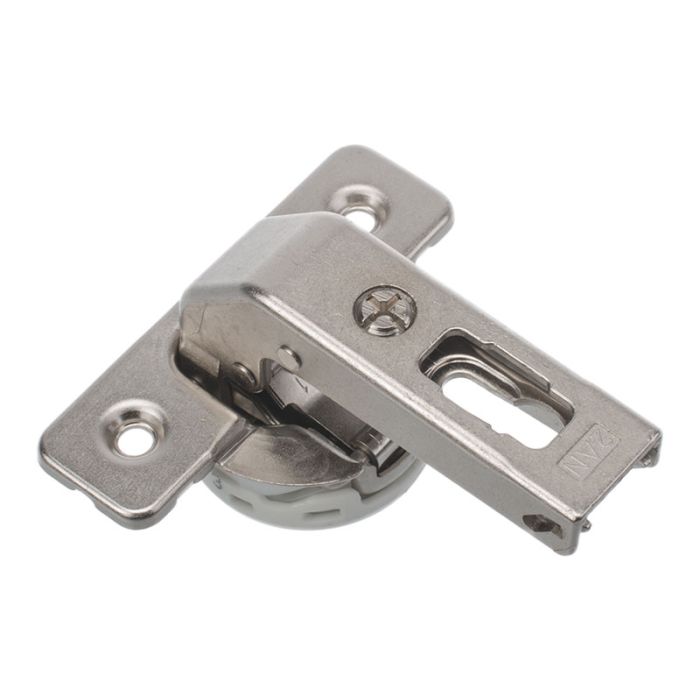

SALICE Series 700 110° Concealed hinge with integrated soft close, for small spaces, C7P6ND9.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- For small spaces
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Compatible with mounting plate B2SGH (28x32 mm drilling)

Mounting plate is not included and has to be ordered separately.
241 in stock
£3.35
Downloads
pdf
(Size: 934.5 KB)
More Information
SKU201557
Weight (Kg)0.077000
K3-6 mm
Drilling depth13,5 mm
ø35 mm
MaterialSteel / Zamak
FixingsWood Screw
FinishNickel Plated
OA110°
DP45 x 9,5
