SALICE - Hinge Series 700 110° Half Overlay C7P6GD9

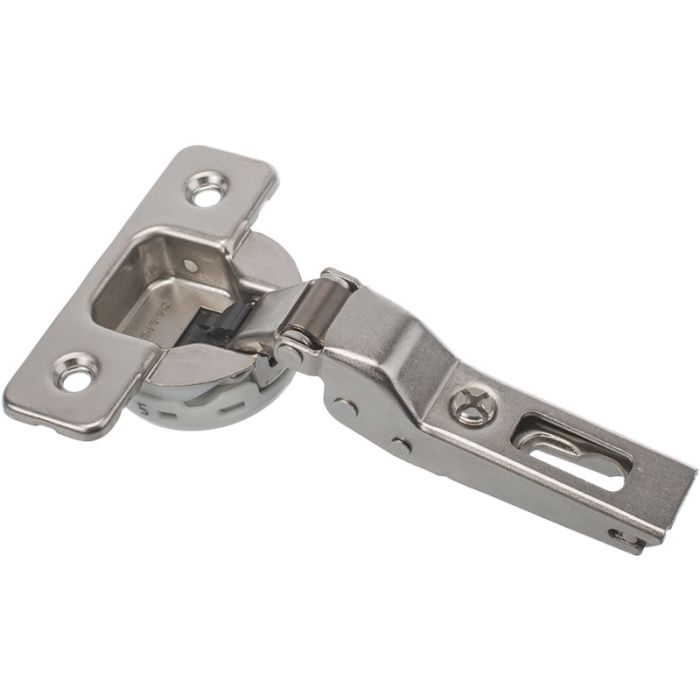

SALICE Series 700 110° Concealed hinge for half overlay door C7P6GD9.

Technical information
- 110° Opening angle
- with integrated soft-close mechanism in the hinge cup
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 13,5 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate is not included and has to be ordered separately.
414 in stock
£1.95

Additional Information

Additional Information

SKU 200126
Weight (Kg) 0.0650
K
3-6 mm
Drilling depth 13,5 mm
ø
35 mm
H=
H=6+K-(D)
Material Steel
Fixings
Wood Screw
Finish Nickel Plated
OA
110°
DP
45 x 9,5
