SALICE - Hinge Series Push 110° Full Overlay C2PPA99

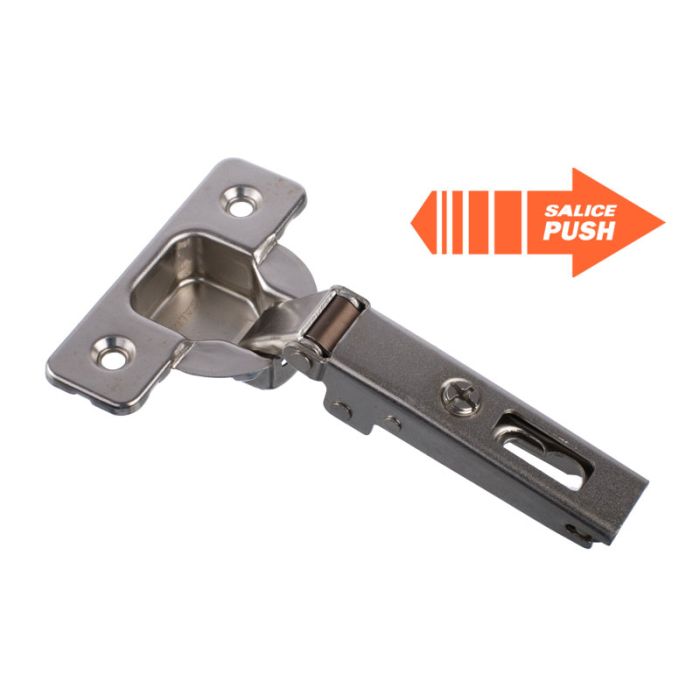

SALICE Series Push 110° Concealed hinge for full overlay door, with negative spring 'Push to Open', C2PPA99. Must be combined with Release Device.

Technical information
- With negative spring (Push to open)
- 110° Opening angle
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate and release device is not included and has to be ordered separately.
362 in stock
£2.35

Additional Information

Additional Information

SKU 201898
Weight (Kg) 0.0610
K
3-6 mm
Drilling depth 11 mm
ø
35 mm
H=
H=15+K-(D)
Material Steel
Fixings
Wood Screw
Finish Nickel Plated
OA
110°
DP
45 x 9,5
