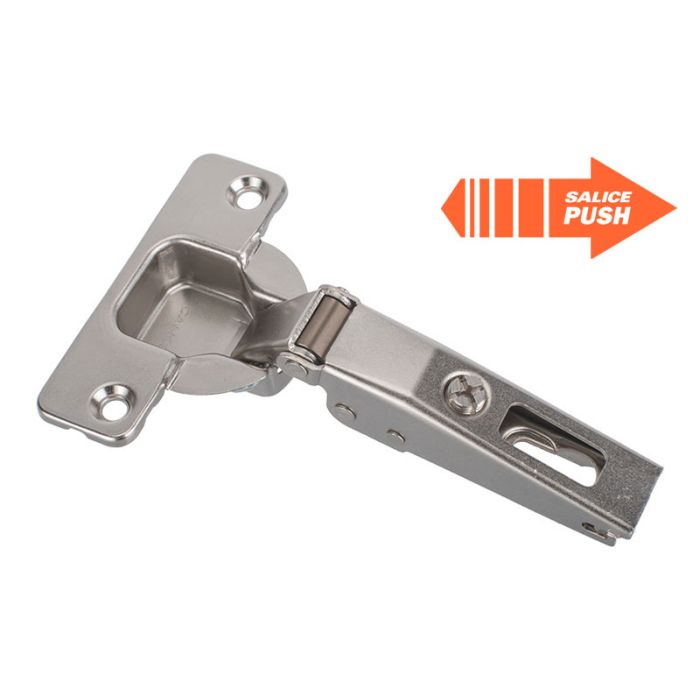

SALICE - Hinge Series Push 110° Full Overlay C2UPD99

SALICE Series Push 110° Concealed hinge for full overlay door, with negative spring 'Push to Open', C2UPD99. Must be combined with Release Device.

Technical information
- With negative spring (Push to open)
- 110° Opening angle
- Hole pattern: 52 x 5,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.

Mounting plate and release device is not included and has to be ordered separately.
312 in stock
£2.35
Downloads
pdf
(Size: 7.6 MB)
pdf
(Size: 774.2 KB)
More Information
SKU202905
Weight (Kg)0.061000
K3-6 mm
Drilling depth11 mm
ø35 mm
H=H=10+K-(D)
MaterialSteel
FixingsWood Screw
FinishNickel Plated
OA94°

Mounting plates suitable for Salice hinges from Series 100, 200, 400, 700, B, F, M and Silentia
