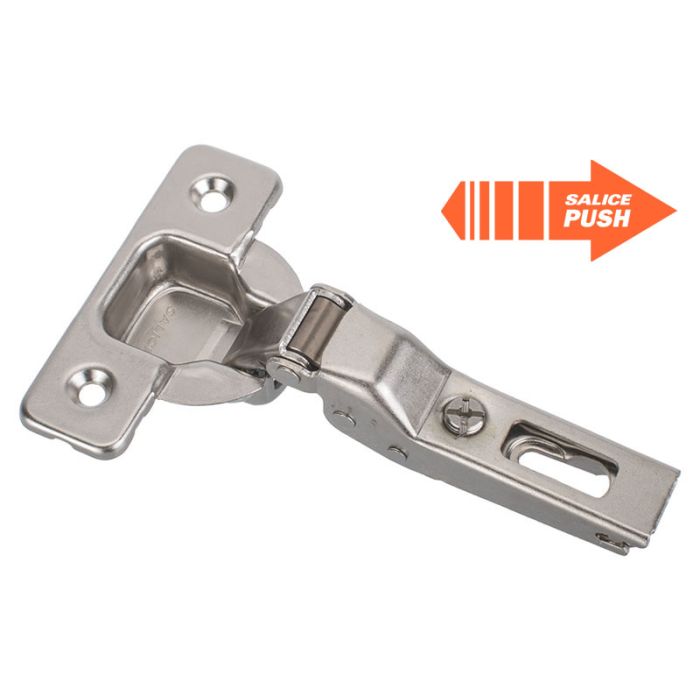

SALICE - Hinge Series Push 110° Half Overlay C2PPG99
- With negative spring (Push to open)
- 110° Opening angle
- Hole pattern: 45 x 9,5 mm
- Fixing with wood screw
- 11 mm deep metal cup (Ø 35 mm)
- Possible drilling distance on the door (K): from 3 to 6 mm
- Traditional or snap-on assembly of the door.
Mounting plate and release device is not included and has to be ordered separately.
|Drilling depth||11 mm|
