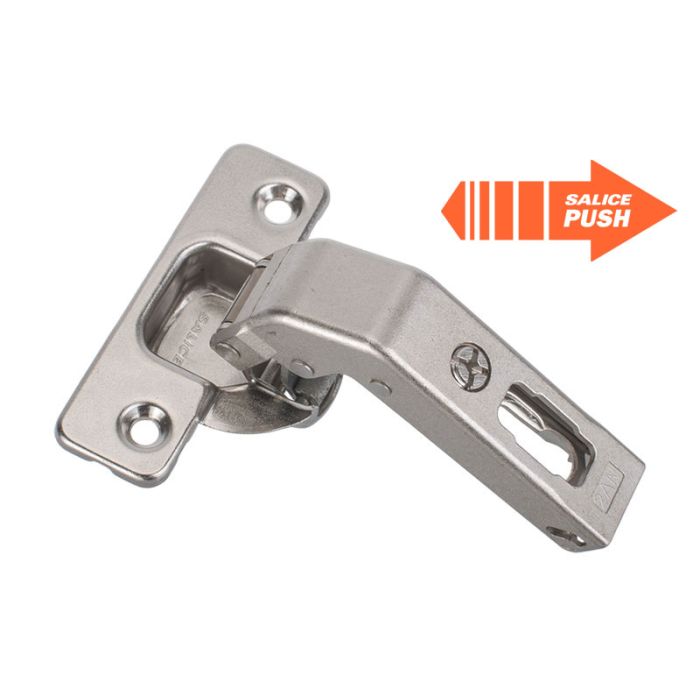

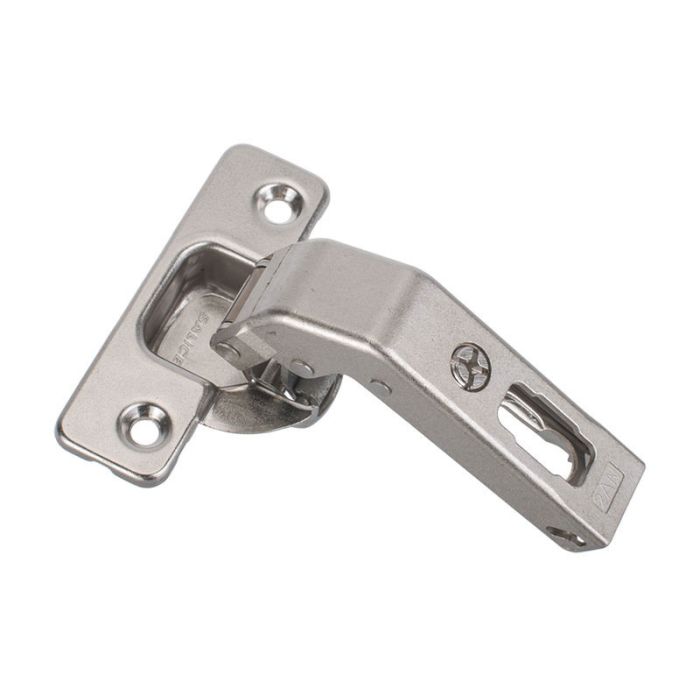

SALICE - Mini Hinge Series 200 94° C2AVN99

SALICE Series Push Mini Hinge for small spaces 94° Opening angle, C2AVN99. Must be combined with Release Device.

Technical information
- Hinge arm and cup made of Steel and Zamak, Nickel Plated
- 94° Opening angle
- For small spaces
- 11 mm deep metal cup (Ø 35 mm)
- Hole pattern: 48 x 6 mm
- Possible drilling distance on the door (K): from 3 to 9 mm
- Traditional assembly of the door
- Compatible with mounting plate B2SGH (28x32 mm drilling)

Mounting plate and release device is not included and has to be ordered separately.
48 in stock
£4.75
Downloads
pdf
(Size: 7.6 MB)
More Information
SKU202590
Weight (Kg)0.075000
K3-9 mm
Drilling depth11 mm
ø35 mm
MaterialSteel / Zamak
FixingsWood Screw
FinishNickel Plated
OA94°
