SALICE - Mini Hinge Series 600 30° C6A7E99

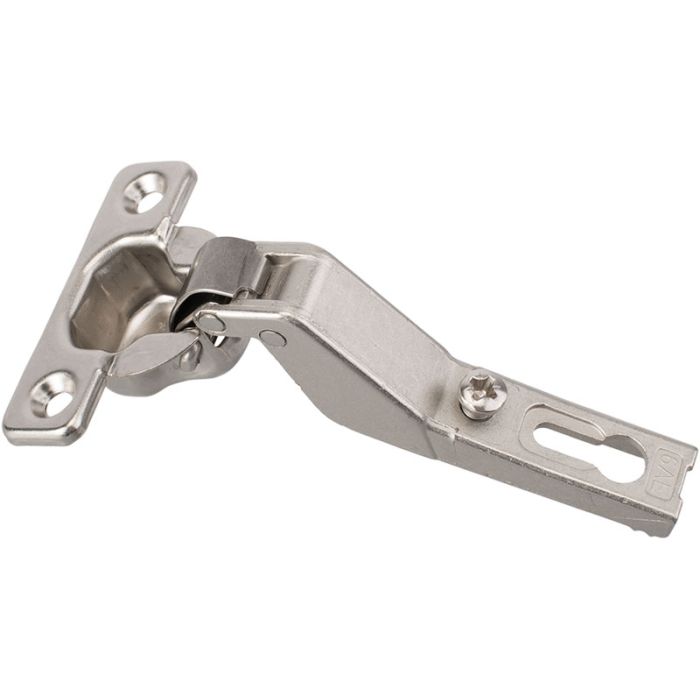

SALICE Series 600 Mini Hinge 30° angled arm.

Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 30° angled arm
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door

Mounting plate is not included and has to be ordered separately.
145 in stock
£1.15
Downloads
pdf
(Size: 701 KB)
More Information
SKU200069
Weight (Kg)0.045000
K3-8 mm
Drilling depth11,5 mm
ø26 mm
MaterialSteel
FixingsWood Screw
FinishNickel Plated
OA94°
DP38 x 7,5
