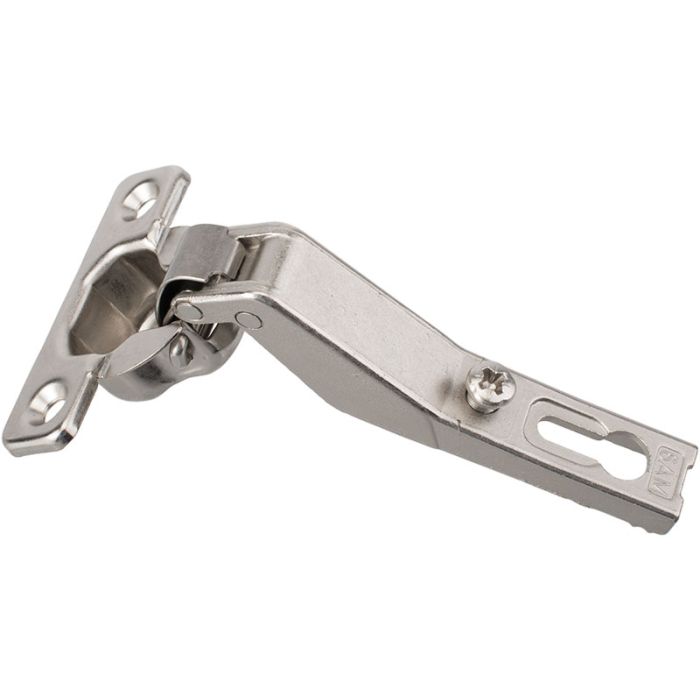

SALICE - Mini Hinge Series 600 45° C6A7M99

SALICE Series 600 Mini Hinge 45° angled arm.

Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 45° angled arm
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door

Mounting plate is not included and has to be ordered separately.
1268 in stock
£1.15

Additional Information

Additional Information

SKU 200074
Weight (Kg) 0.0450
K
3-8 mm
Drilling depth 11,5 mm
ø
26 mm
Material Steel
Fixings
Wood Screw
Finish Nickel Plated
OA
94°
DP
38 x 7,5
