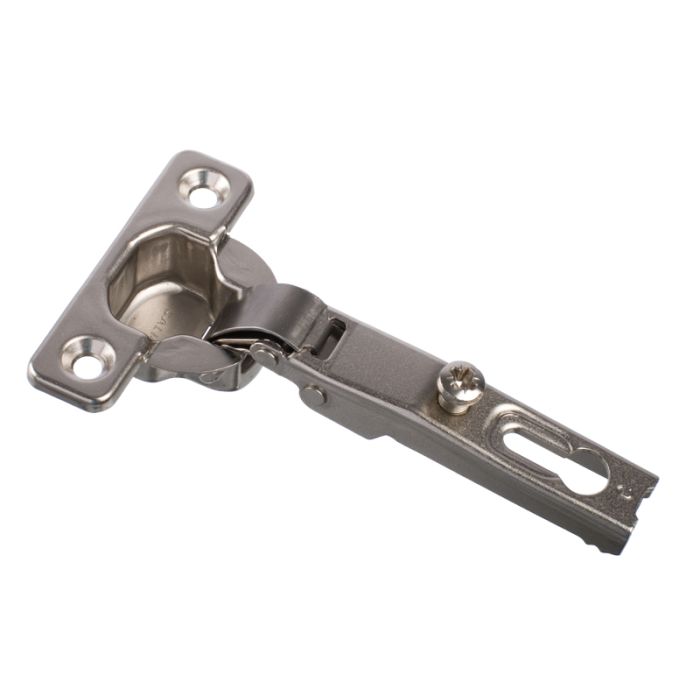

SALICE Mini Hinge Series 600 94° Full Overlay C6A5C99

SALICE Series 600 Concealed Mini Hinge for full overlay door, without spring.

Technical information
- Hinge arm and cup made of Steel, Nickel Plated
- 94° Opening angle
- 11,5 mm deep metal cup (Ø 26 mm)
- Possible drilling distance on the door (K): from 3 to 8 mm
- Traditional assembly of the door
- Without spring

Mounting plate is not included and has to be ordered separately.
566 in stock
£0.59

Additional Information

Additional Information

SKU 201819
Weight (Kg) 0.0380
K
3-8 mm
Drilling depth 11,5 mm
ø
26 mm
H=
H=12,5+K-(D)
Material Steel
Fixings
Wood Screw
Finish Nickel Plated
OA
94°
DP
38 x 7,5
