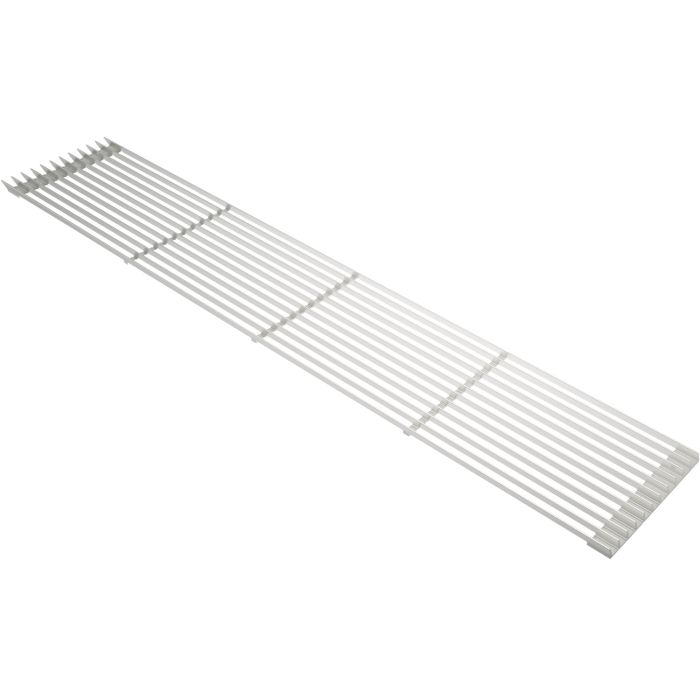

Ventilation Grille 596 x 117 mm Titanium

Aluminium ventilation grille with a titanium-coloured anodised finish for fitting above or below kitchen cabinets. The grille can be adjusted along the marked break-off grooves to suit the opening.

• Material: Aluminium.
• Finish: Titanium, anodised.
• Overall dimensions: 596 x 117 mm.
• Marked trimming dimensions: 52, 62, 72, 82, 92, 102 and 112 mm.
• Ventilation area: 200 cm² at the 57 mm dimension.
• Mounting with screws and an edge trim.

Measure the opening before adjusting and fitting. When used around built-in appliances, the grille's position and ventilation area must meet the appliance manufacturer's requirements.
