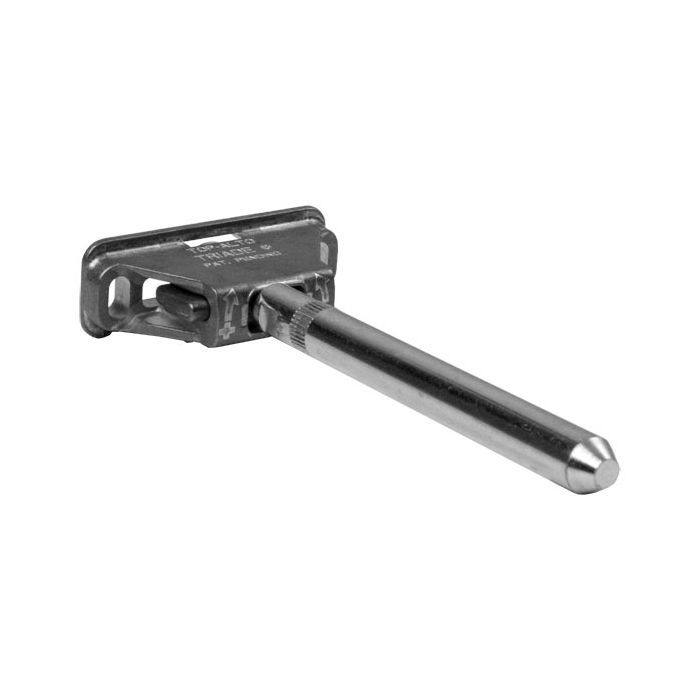

Triade Concealed Mounting Bracket

TRIADE is a concealed mounting bracket made of Zinc alloy and steel for shelves 25 to 40mm thick. It has been conceived to simplify the shelf installation. It is provided with three independent adjustments:
VERTICAL
Before installing the shelf, the mounting brackets can be adjusted in height and (vertically) aligned through the slots.
HORIZONTAL
While placing the shelf in position, the supporting pins can be slided horizontally.
INCLINATION
When the shelf is partially inserted, the shelf angle can be adjusted front to back by turning the supporting pins with a 10mm open-ended wrench.
The capacity loading is 15Kg each (shelf weight included) for a shelf max 300mm deep for the STANDARD version and 20Kg each (shelf weight included) for a shelf max 400mm deep for the MAXI version.

Starting at £0.02

Grouped product items
Product Name Qty
"Triade Standard" Concealed Shelf Bracket Adjustable (15 kg/bracket) min. 25-40 mm shelves
£4.15

SKU: 202854

66 in stock

Attributes:

  • Unit: 1 Piece
  • Height: 22,8 mm
  • Length: 150
  • Maximum Load Capacity: 15 kg/pcs
"Triade Maxi" Concealed Shelf Bracket Adjustable (20 kg/bracket) min. 40 mm shelves
£6.55

SKU: 203195

103 in stock

Attributes:

  • Unit: 1 Piece
  • Height: 28,5 mm
  • Length: 150
  • Maximum Load Capacity: 20 kg/pcs
Triade Standard Bracket
£2.15

SKU: 207894

129 in stock

Attributes:

  • Unit: 1 Piece
  • Height: 20 mm
  • Length: 60+4 mm
  • Maximum Load Capacity: 15 kg/pcs
Triade Maxi Bracket
£2.55

SKU: 209406

65 in stock

Attributes:

  • Unit: 1 Piece
  • Height: 23,5 mm
  • Length: 60+4 mm
  • Maximum Load Capacity: 20 kg/pcs
Pan Head Machine Screw M5x12 PZ2
£0.02

SKU: 209407

313 in stock

Attributes:

  • Unit: 1 Piece
  • Height: -
  • Length: -
Downloads
pdf
(Size: 1.4 MB)
pdf
(Size: 2.3 MB)
